1.5. Practice Exercises

Exercise 1: Person Class

Person Class

Consider the code for a Person class below, which is used throughout this activity.

public class Person {

   private String name;
   private int age;

   public Person(String name, int age) {
      this.name = name;
      this.age = age;
   } // Person

   public String getName() {
       return this.name;
   } // getName

   public void setName(String name) {
       this.name = name;
   } // setName

   public int getAge() {
       return this.age;
   } // getAge

   public void setAge(int age) {
       this.age = age;
   } // setAge

} // Person

Question 1

Answer the following questions about the Person class:

1. Identify the class’s instance variables. How many instance variables are there?

2. Identify the class’s constructors. How many constructors are there?

3. Identify the class’s methods. How many methods are there?

4. Which methods declare local variables? Which do not?

Note

Method parameters are considered local variables.

Solution

1. name and age – (2)

2. public Person(String name, int age) – (1)

3. getName(), setName(String name), getAge(), and setAge(int age) – (4)

4. The setName(String name) and setAge(int age) methods declare 1 local variable each, and the other methods do not declare any local variables. The constructor, which can be considered a special method, declares 2 local variables.

Question 2

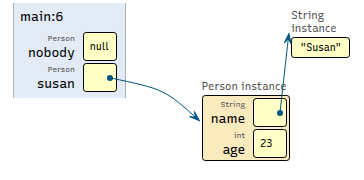

Draw a diagram that depicts what the program’s memory looks like after executing the code below.

Person nobody = null;
Person susan = new Person("Susan", 23);

Solution

Question 3

Draw a memory map diagram depicting the state of the variables after the first half of the code below executes. Once your memory map is complete, write down what the output of the second half should be.

// first half
Person nobody = null;
Person susan = new Person("Susan", 23);
Person bill = new Person("Bill", 22);
Person p = bill;

// second half
System.out.println(nobody);
System.out.println(susan.getName());
System.out.println(bill.getAge());
System.out.println(p.getAge());

Solution

Question 4

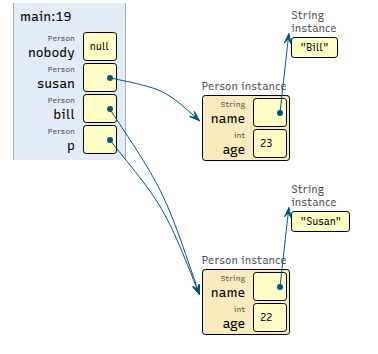

Draw a new memory diagram that takes into consideration the new code in the middle. After that, write down the output of the print statements near the bottom.

// these four lines have not changed
Person nobody = null;
Person susan = new Person("Susan", 23);
Person bill = new Person("Bill", 22);
Person p = bill;

// new code
susan.setName("Bill");
bill.setName("Susan");

// print statements
System.out.println(susan.getName());
System.out.println(bill.getName());
System.out.println(p.getName());
System.out.println(nobody);

Solution

Note

You may be surprised by the fact that this compiles, runs without crashing, and produces output, given that nobody is used in the last print statement and the value of nobody is null.

It’s okay to print null. This value is only a problem when you try to use it as a calling object.

Question 5

Using the updated memory map you drew for the last question, write down the output of the code below.

// these four lines have not changed
Person nobody = null;
Person susan = new Person("Susan", 23);
Person bill = new Person("Bill", 22);
Person p = bill;

// these four lines have not changed
susan.setName("Bill");
bill.setName("Susan");

// ignore the other print statements from earlier
// ...
System.out.println(nobody.getName());

Solution

This crashes when run due to a NullPointerException that is encountered when nobody.getName() is executed.

Exercise 2: SalaryAccount Class

SalaryAccount Class

You should assume the class below exists and is in scope for the questions in this subsection:

Listing 1.5 in SalaryAccount.java

public class SalaryAccount {

   private int hours;
   private double rate;

   public SalaryAccount(int hours, double rate) {
      // assume appropriate error handling...
      this.hours = hours;
      this.rate = rate;
   } // SalaryAccount

} // SalaryAccount

Question 1

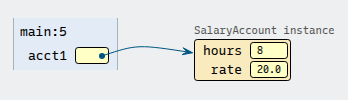

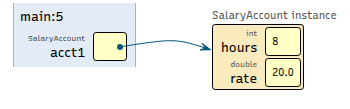

Draw the memory map that represents the state of the variables after the following code executes:

SalaryAccount acct = new SalaryAccount(8, 20.0);

Solution

Your memory map should look similar to the following:

Question 2

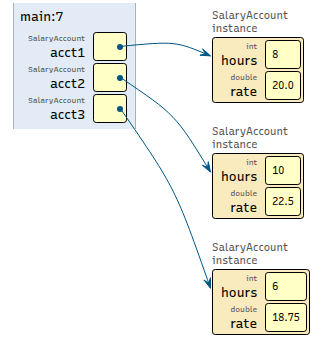

Draw the memory map that represents the state of the variables after the following code executes:

SalaryAccount acct1 = new SalaryAccount(8, 20.0);
SalaryAccount acct2 = new SalaryAccount(10, 22.5);
SalaryAccount acct3 = new SalaryAccount(6, 18.75);

Solution

Your memory map should look similar to the following:
